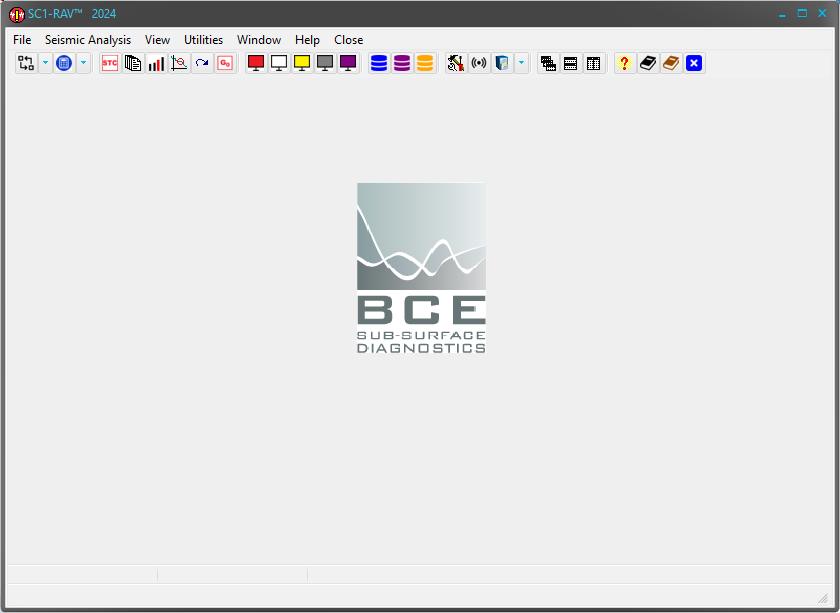

SC1-RAV™ is a Windows® program, which facilitates comprehensive Downhole Seismic Testing (DST) data reduction, analysis, and display. The user is provided with an extensive set of mathematical tools and patented algorithms to derive DST interval velocities and to quantify vertical seismic profiles. In addition, SC1-RAV™ allows the review of frequency spectra, the comparison of both unfiltered and digitally filtered traces, and the plotting of interval velocity profiles. SC1-RAV™ also provides extensive chart editing, plotting, and exporting functionality.
SC1-RAV™ includes the following features:
  • Configurable for either geophones or accelerometers.
  • Extensive frequency spectrum analysis.
  • Bandpass, high pass, low pass, and notch digital filters.
  • Patented P-Wave and S-wave velocity estimation algorithm.
  • Batch job processing.
  • Source wave arrival time estimation.
  • Linear least squares regression interval velocity estimation.
  • Reverse Polarity Technique.
  • Forward Modeling Downhill Simplex Method (FMDSM) in estimating interval velocities.
  • Display of seismic depth profile with trend line specification.
  • Display of peak particle accelerations, velocities, and displacements.
  • 3D Displays of VSPs.
  • Calculation of interval Gmax values.
  • The ability to carry out data interpolation to increase the time series resolution.
  • Post data stacking.
  • Application of Source Wave Signature Isolation (SWSI) to minimize the effect of near field waves, refractions, "dirty" sources, and source wave multiples.
  • Display of calculated interval velocities.
  • Option to display site information data entered during data acquisition.
  • Option to convert Geotech AB data acquisition files so they can be analyzed.
  • Option to process seismic data with signal decay in batch mode.
  • Option to export FMDSM interval velocity estimates to a text file.
  • Option to display pre-trigger data.
  • Print preview functionality added to all graphs.
  • Optimized correlator (when calculating initial interval velocities) to ensure an equivalent sampling rate of 100 KHz by utilizing linear interpolation between digitally sampled points.
  • Ability to apply notch filter on harmonics within the Cascadable Filters.
  • Enhanced display options when viewing seismic data and displaying standard VSPs or full waveform VSPs.
  • Option to save or export user specified arrival times when displaying standard VSPs and to display previously saved arrival times when displaying standard VSPs.
  • Powerful Seismic Trace Characterization (STC) algorithm.
  • Ability to perform 2D Normal-Move-Out Tomography.
  • 64 bit environment and parallel processing.
  • InterBase 64 bit databases.
  • Various algorithm enhancements.
  • Incorporation of FMDSM Absorption Analysis.
  • Total review and expansion of the Source Wave Signature Isolation (previously referred to as Signal Decay).
  • Added additional SEG-2 conversion options.
  • Significant improvement in 2D Tomography interface.
  • Ability to display STC values in VSPs.
  • Updated STC algorithm.
  • Incorporation of Stone Column Analysis option.
  • Incorporation of option to import text files with arrival times in all databases.
  • Expanded functionality of interval velocity plots to allow the display of multiple profiles simultaneously.
  • Windows 11 development environment with the latest graphing and database software.
  • New and robust software licensing.
  • Updated and optimized analytical algorithms. Some examples outlined below:
    • 2D Tomography – 31% processing time reduction.
    • Stone Column Tomography – 30% processing time reduction.
    • FMDSM - 92% processing time reduction.
  • Increased the maximum FMSDM DST interval velocity and absorption profile that can be processed from 70 to 100.
  • Ability to calculate and save Relative Arrival Times (RATs) from true interval DST where top and bottom sensors are present.
